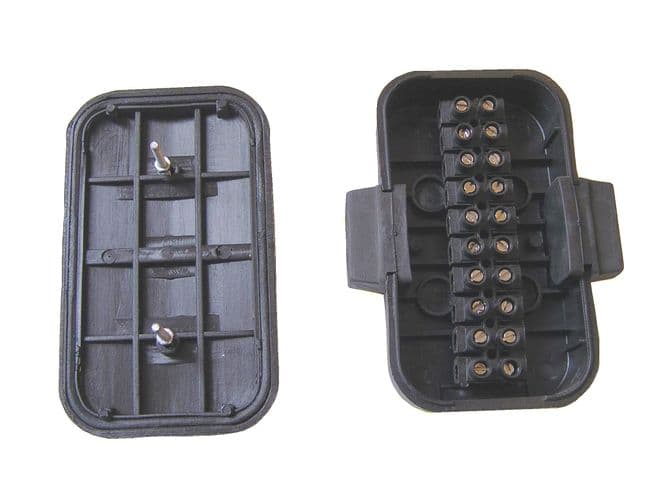

10 WAY JUNCTION BOX

Product information

10 Way junction box with a screw down lid.

This junction box is 118mm long 65mm wide and 40mm deep.

The connecting block inside rated at 20A.

The junction box has sealed holes for 4 wires (2 on each side) and a O ring around the lid to make it water resistant.

WIRING CONNECTIONS

1 = Yellow = Left hand indicator.

2 = Blue = Fog light.

3 = White = Earth.

4 = Green = Right hand indicator.

5 = Brown = Right hand side light.

6 = Red = Stop light.

7 = Black = Left hand side light

Weight

0.17kg
