12MM SPRING BOLT

12MM SPRING BOLT

12MM SPRING BOLT

12MM SPRING BOLT

Product information

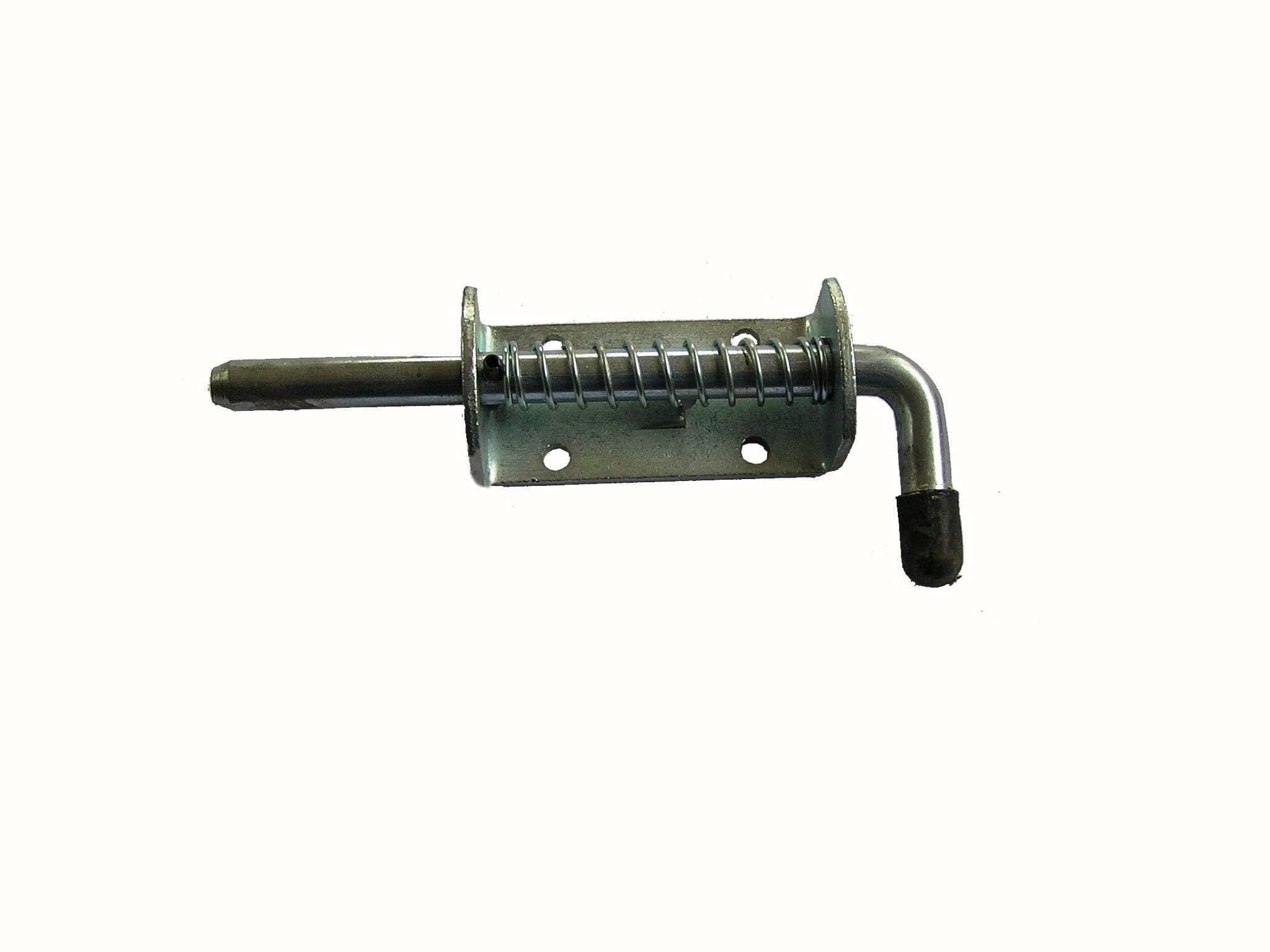

12mm / 1/2 zinc plated spring loaded bolt.

Spring loaded to keep it in the closed position.

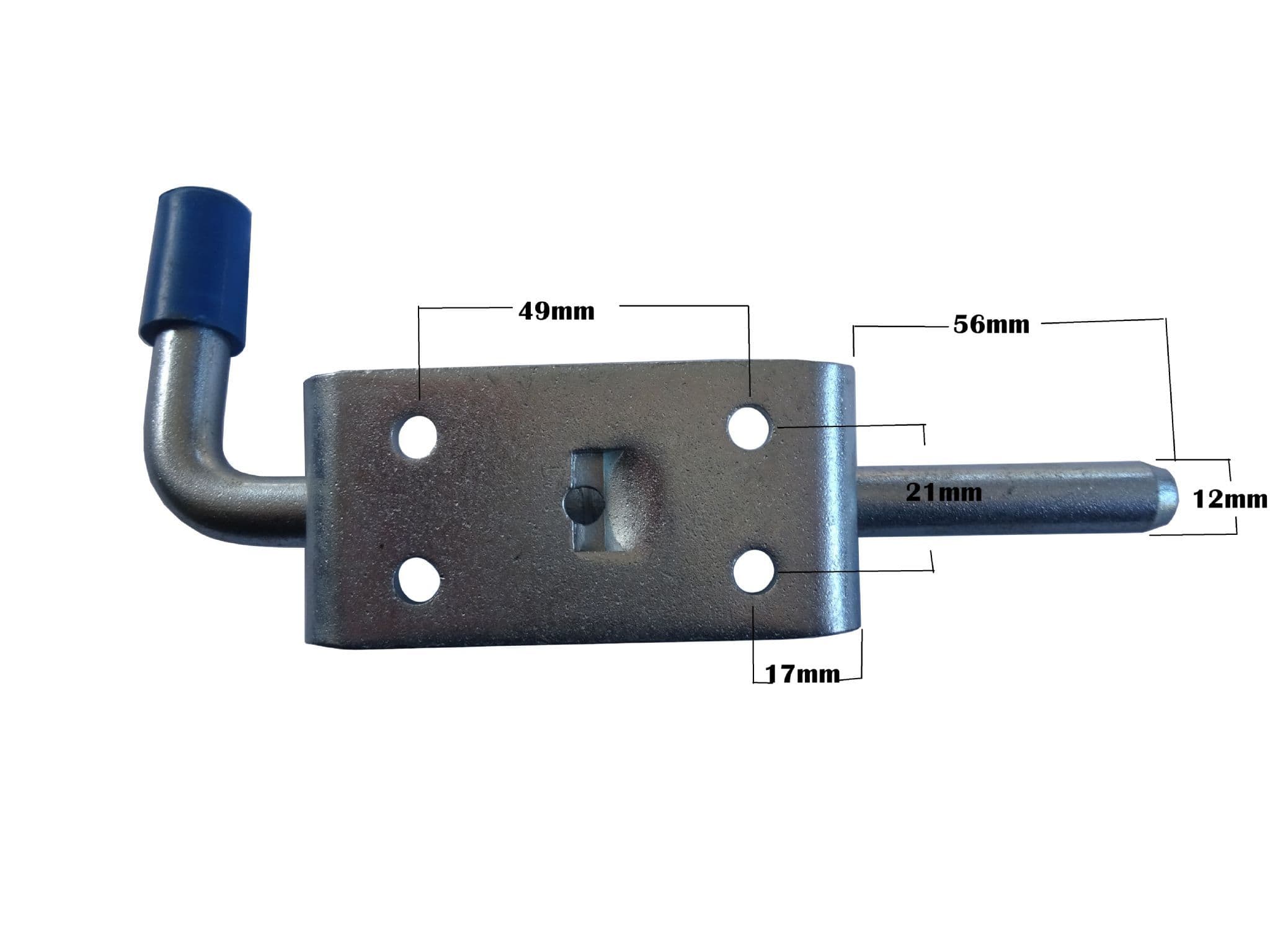

The base plate is 85mm long, 40mm wide and has 4 x 6mm mounting holes.

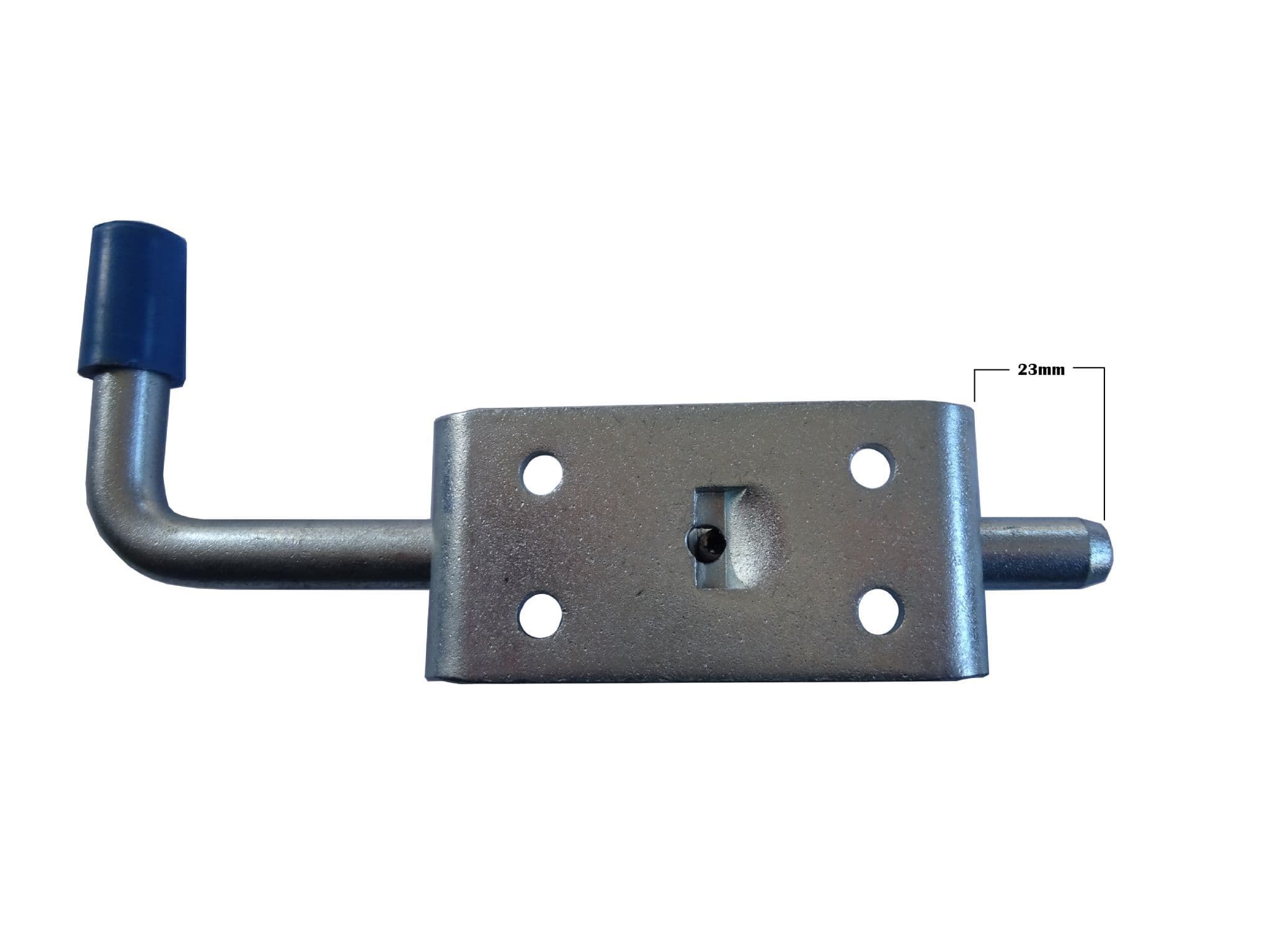

From the base plate to the end of the spring bolt is 58mm.

There is a pin to hold the bolt in the open position.

Overall length 175mm.

Technical specifications

Weight

0.35kg
