12V 13 PIN EURO PLUG

Out of stock

Product information

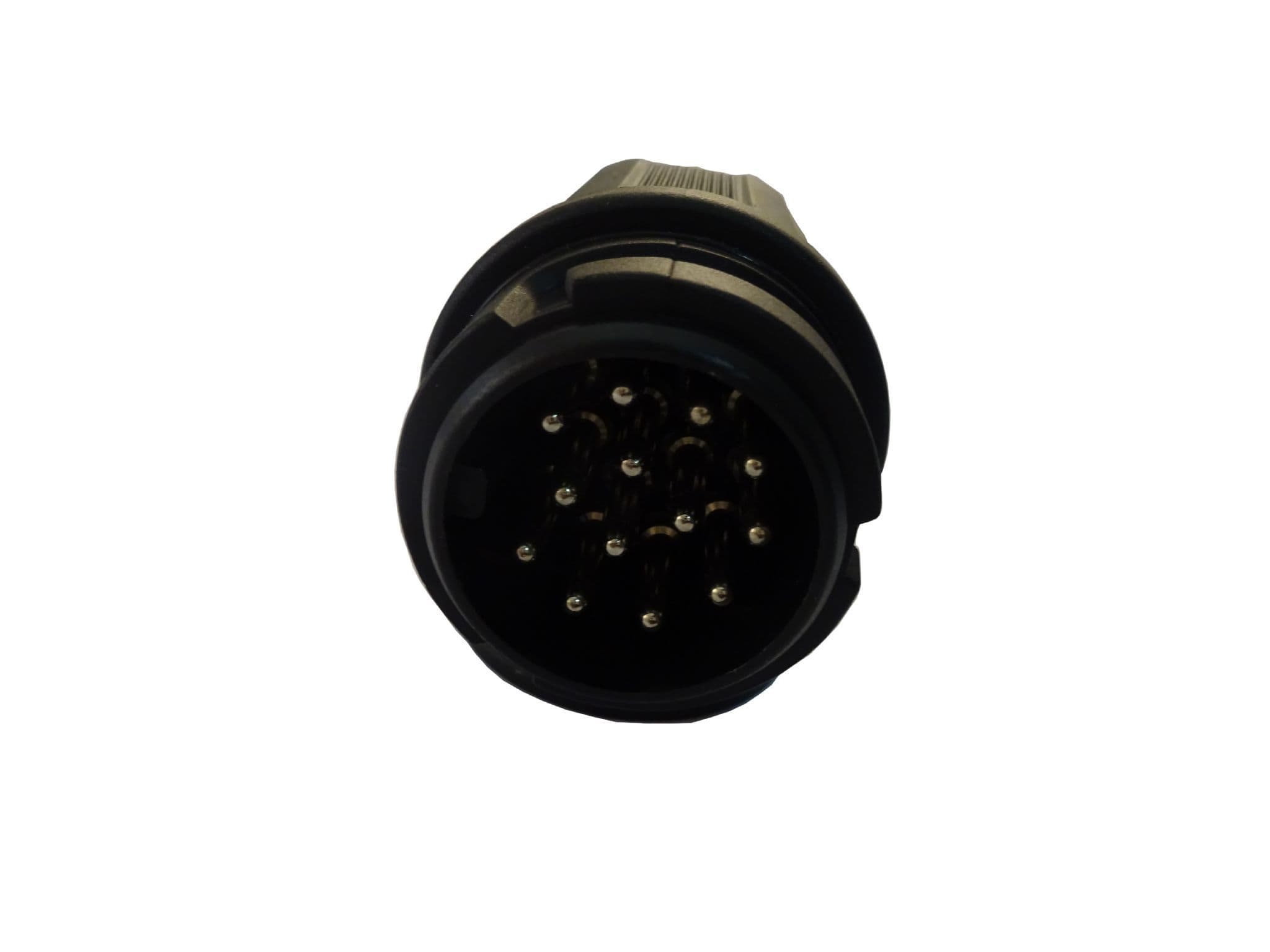

12V euro 13 Pin plastic plug.

This plug is for trailer or caravan lights and auxiliary.

PLUG WIRING CONNECTIONS

1 = Yellow = Left hand Indicator

2 = Blue = Fog light.

3 = White = Earth. (Pins 1-7)

4 = Green = Right hand indicator.

5 = Brown = Right hand side light.

6 = Red = Stop light.

7 = Black = Left hand side light
.
8 = Pink = Reversing lights

9 = Orange = Positive supply for interior lights or charger

10 = Grey = Fridge (Ignition controlled supply)

11 = White/Black = Earth return contact 10

12 = White/Blue = Sensing device

13 = White/Red = Earth return contact 9
