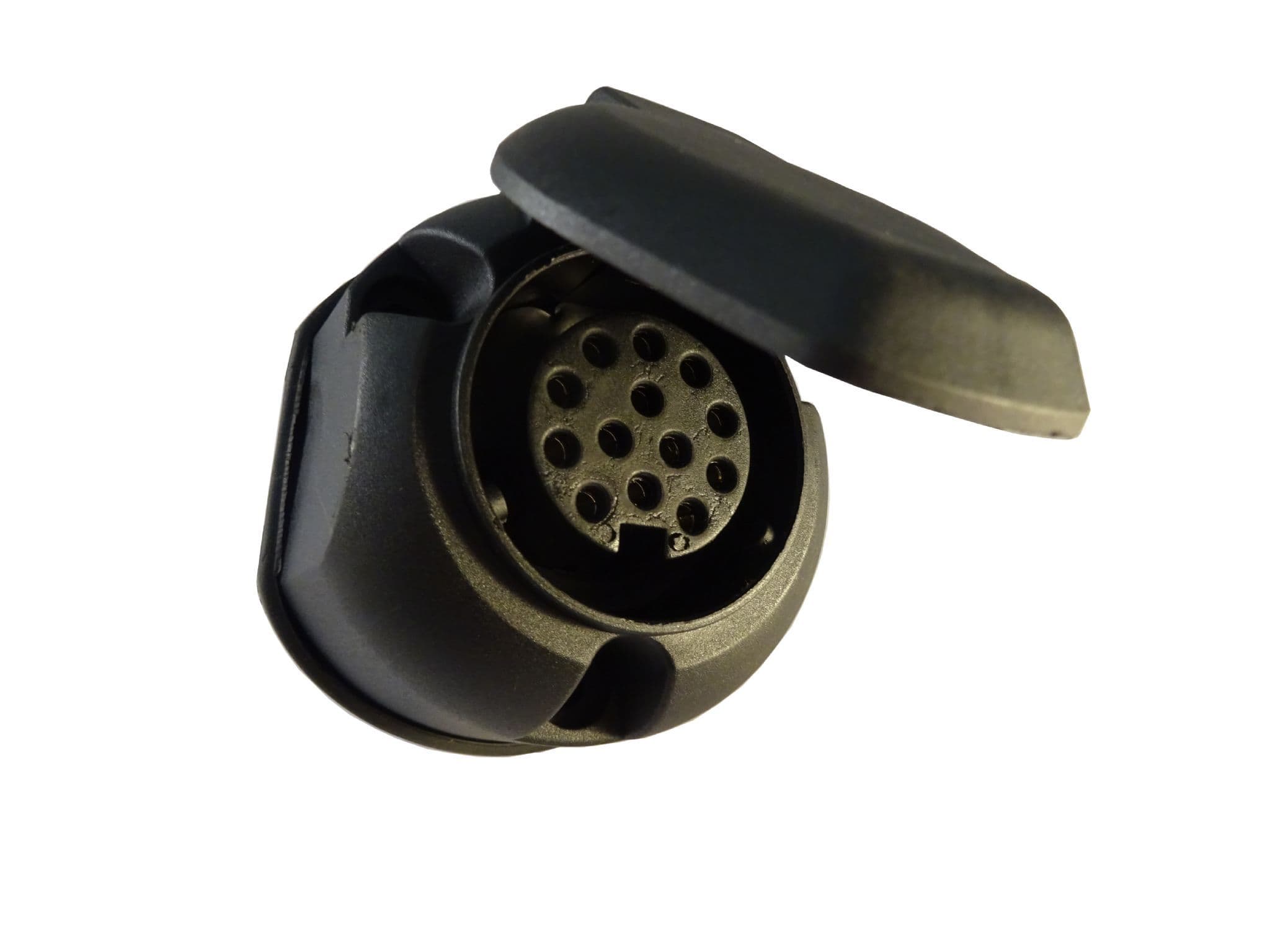

12V 13 PIN EURO SOCKET

Product information

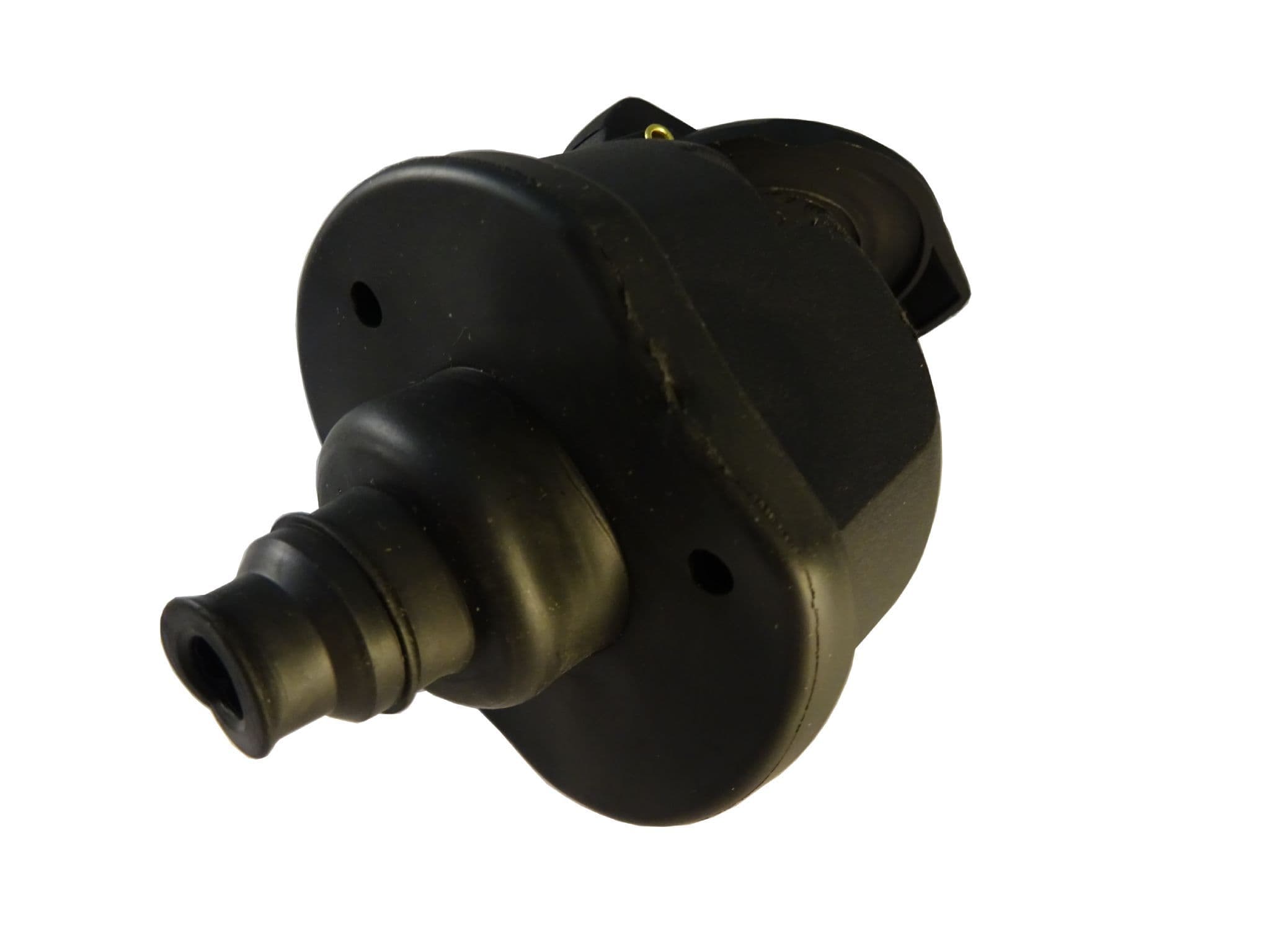

12V euro 13 Pin plastic socket comes complete with rubber gasket.

This socket is for trailer or caravan lights and auxiliary.

SOCKET WIRING CONNECTIONS

1 = Yellow = Left hand Indicator

2 = Blue = Fog light.

3 = White = Earth. (Pins 1-7)

4 = Green = Right hand indicator.

5 = Brown = Right hand side light.

6 = Red = Stop light.

7 = Black = Left hand side light
.
8 = Pink = Reversing lights

9 = Orange = Positive supply for interior lights or charger

10 = Grey = Fridge (Ignition controlled supply)

11 = White/Black = Earth return contact 10

12 = White/Blue = Sensing device

13 = White/Red = Earth return contact 9
