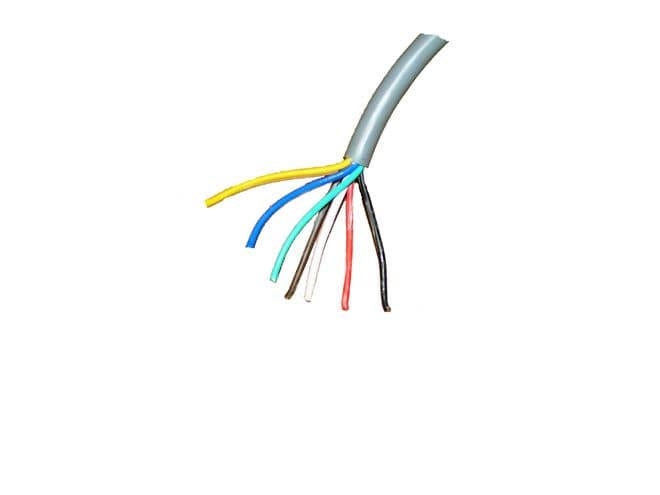

7 CORE CABLE (GREY)

7 CORE CABLE (GREY)

Product information

Grey 7 core auxillary cable.This is a very high quality, heavy duty cable

SOLD PER MTR (in quantity enter amount of metres)

The cable consist of 6 x 1.5mm and 1x 2.5mm rated at 21amp

This 7 core cable can be used on trailers and caravan.

WIRING CONNECTIONS

1 =  Yellow = Reversing lights

2 = Blue = Battery charging (original UK system)

3 = White = Earth return (for pins 2 & 4)

4 = Green = Power supply.

5 = Brown = Spare

6 = Red = Fridge

7 = Black = Earth return (for pin 6)

Notes for 12s wiring

Due to the use of a revised 12s wiring system which differs from the original UK Industry wiring system, we suggest that you connect your 12s socket as above to provide maximum compatibility.

Ensure that no bridging connections exists between pin 2 and pin 3 of the 12s caravan plug. Pin connections may vary on earlier models.

Technical specifications

Weight 0.26kg
