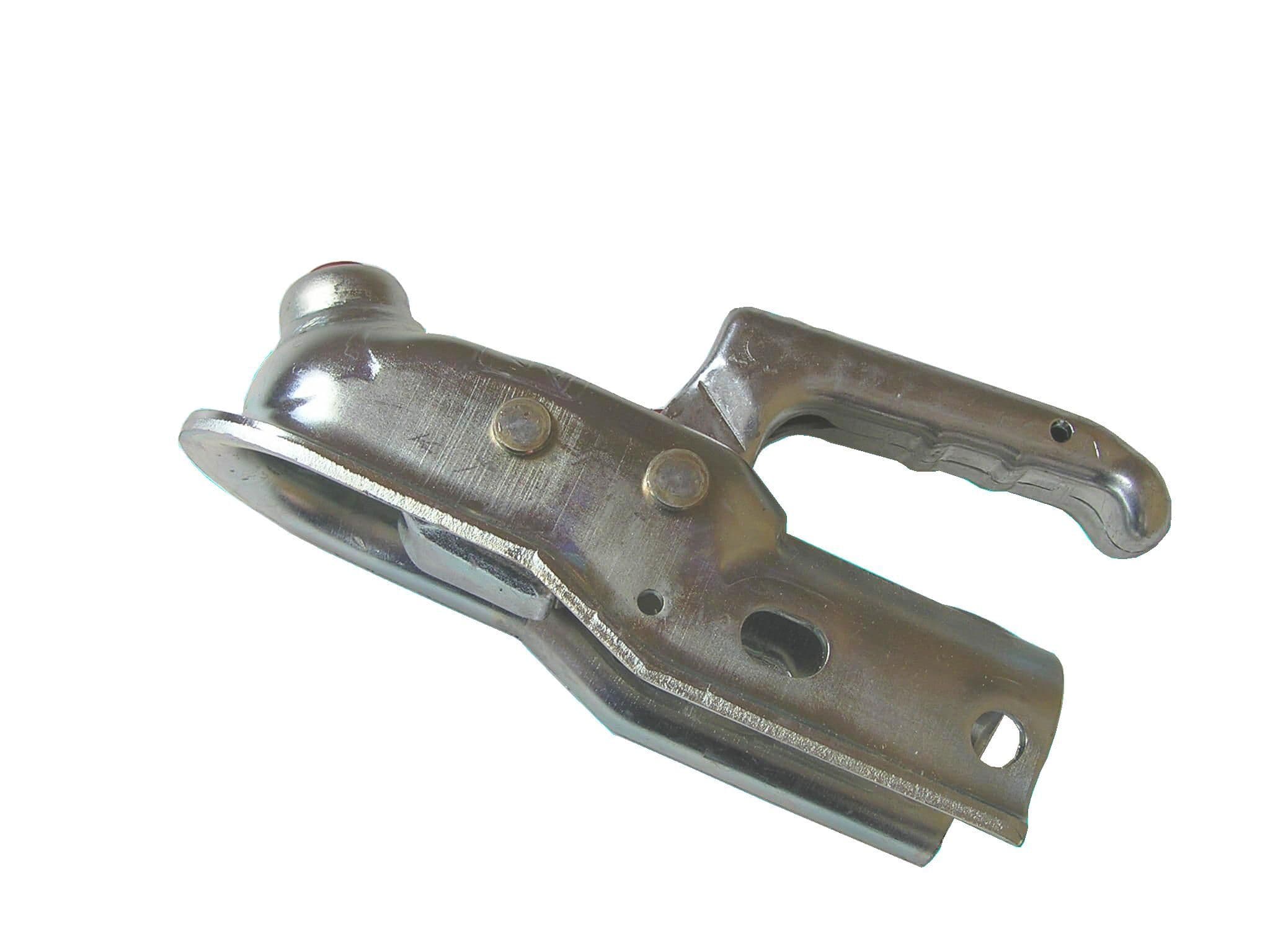

AL-KO AK300 COUPLING HEAD FOR A 50MM DRAW TUBE

AL-KO AK300 COUPLING HEAD FOR A 50MM DRAW TUBE

Out of stock

Product information


 PLEASE NOTE THIS HEAD IS NOW OBSOLETE
For upto 2700kg you need to use the new AK270 or the cast AK301 head
2700kg to 3000kg you need to use the AK301 HEAD

Al-ko AK 300 coupling head ( new generation up to 3000 kg )

Al-ko kit number: ECS-OVKIT03.

Coupling part number: 246902.
New part number 267312

This coupling head is for a 50mm ball and a 50mm draw tube.

The bolt holes on the side are 50mm to 55mm apart and the front one is elongated.

These head are fitted to trailer and caravans with 251S coupling.

Technical specifications

Weight 2kg
