Product information

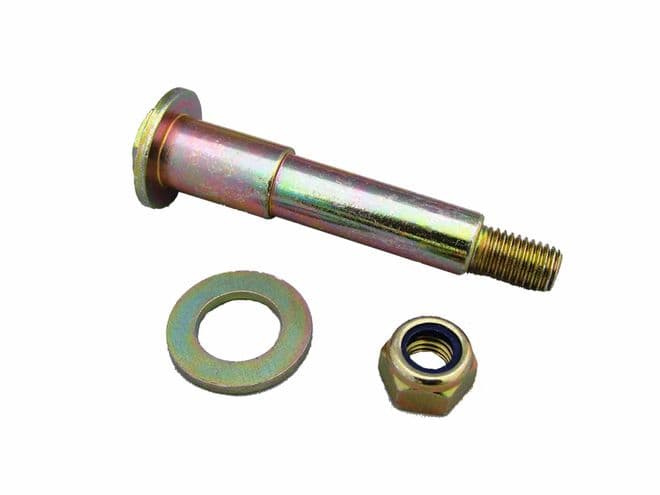

AL-KO handbrake pivot bolt which made from steel, comes complete with bolt , washer and nyloc nut.
The bolt is stepped to enable the bolt to be tightened without crushing the handbrake
AL-KO PART NUMBERS
- bolt 581145
- washer 370693
- Nyloc nut 702750
Overall length 108mm
Diameter of largest step 19mm ,Length of largest step 30mm
Diameter of smaller step 16mm ,Length of smaller step 50mm
Diameter of thread 12mm ,Length of thread 20mm
The bolt is stepped to enable the bolt to be tightened without crushing the handbrake
AL-KO PART NUMBERS
- bolt 581145
- washer 370693
- Nyloc nut 702750
Overall length 108mm
Diameter of largest step 19mm ,Length of largest step 30mm
Diameter of smaller step 16mm ,Length of smaller step 50mm
Diameter of thread 12mm ,Length of thread 20mm
Technical specifications
| Brand | AL-KO |
| Weight | 0.23kg |
