BRITAX 8 WAY JUNCTION BOX

Product information

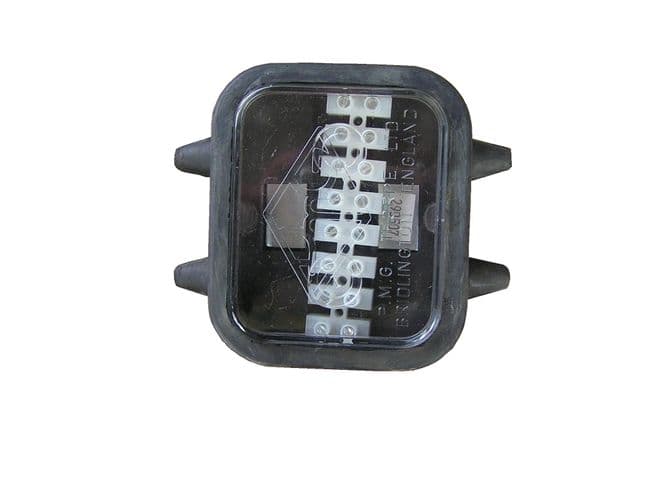

8 Way junction box mounted in a waterproof rubber base.

P.M.G. Britax part number: 3540.00

This junction box is 118mm long 90mm wide and 40mm deep.

The junction box has sealed holes for 4 wires (2 on each side) and a clear plastic lid fitted to a rubber base to make it water resistant.

WIRING CONNECTIONS

1 = Yellow = Left hand indicator.

2 = Blue = Fog light.

3 = White = Earth.

4 = Green = Right hand indicator.

5 = Brown = Right hand side light.

6 = Red = Stop light.

7 = Black = Left hand side light

Weight

0.23kg
