Product information

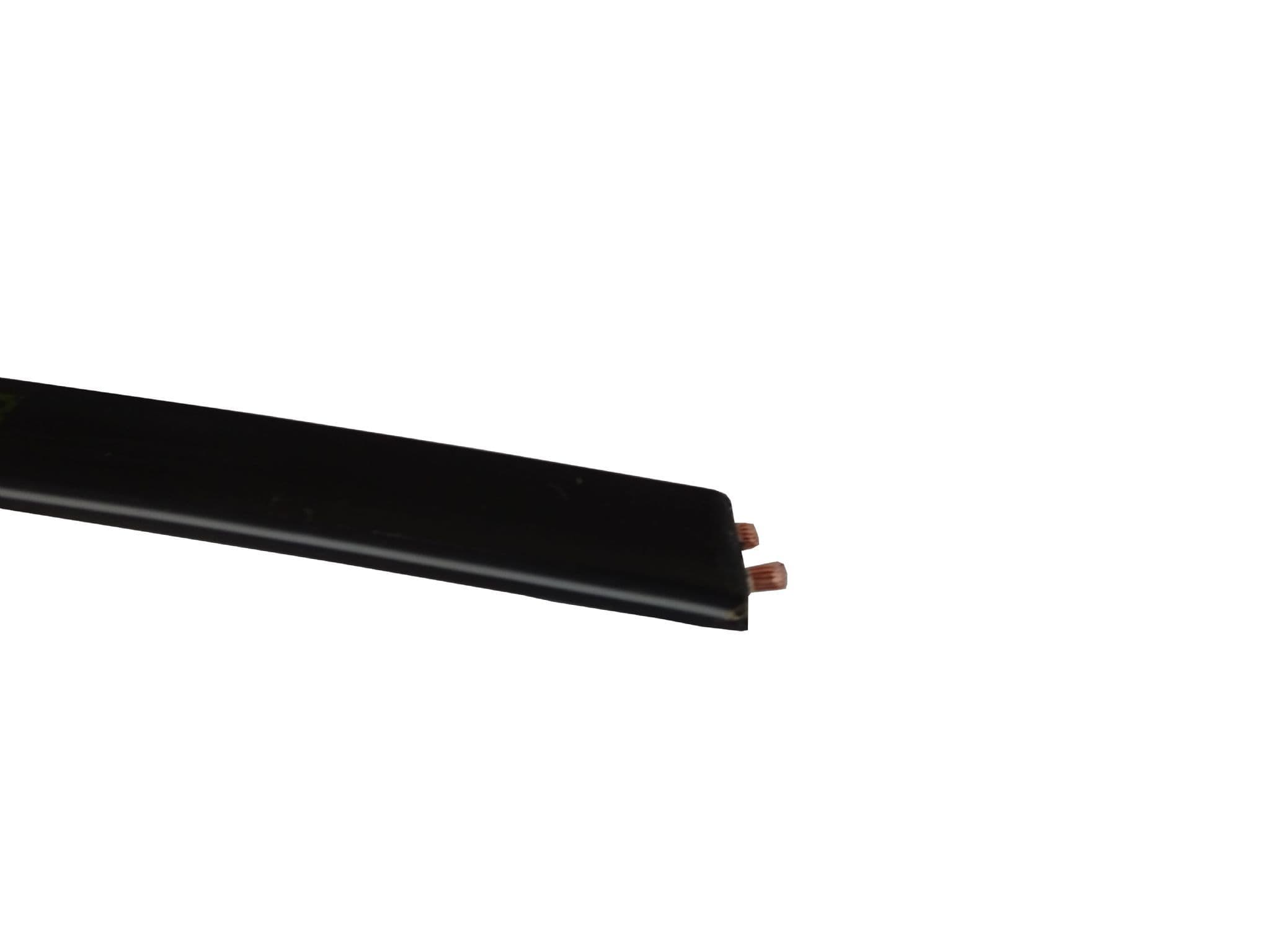

Flat  2 Core automotive rectangular cable to suit Aspock wiring harnesses , PVC insulated to give good accidental cut and abrasion  resistance

SOLD PER MTR (in quantity enter amount of metres)

The cable consist of 2 X 0.75mm wires, one brown and the other white and is rated at 6 amps and has a white stripe on one side so you know which way up it is.

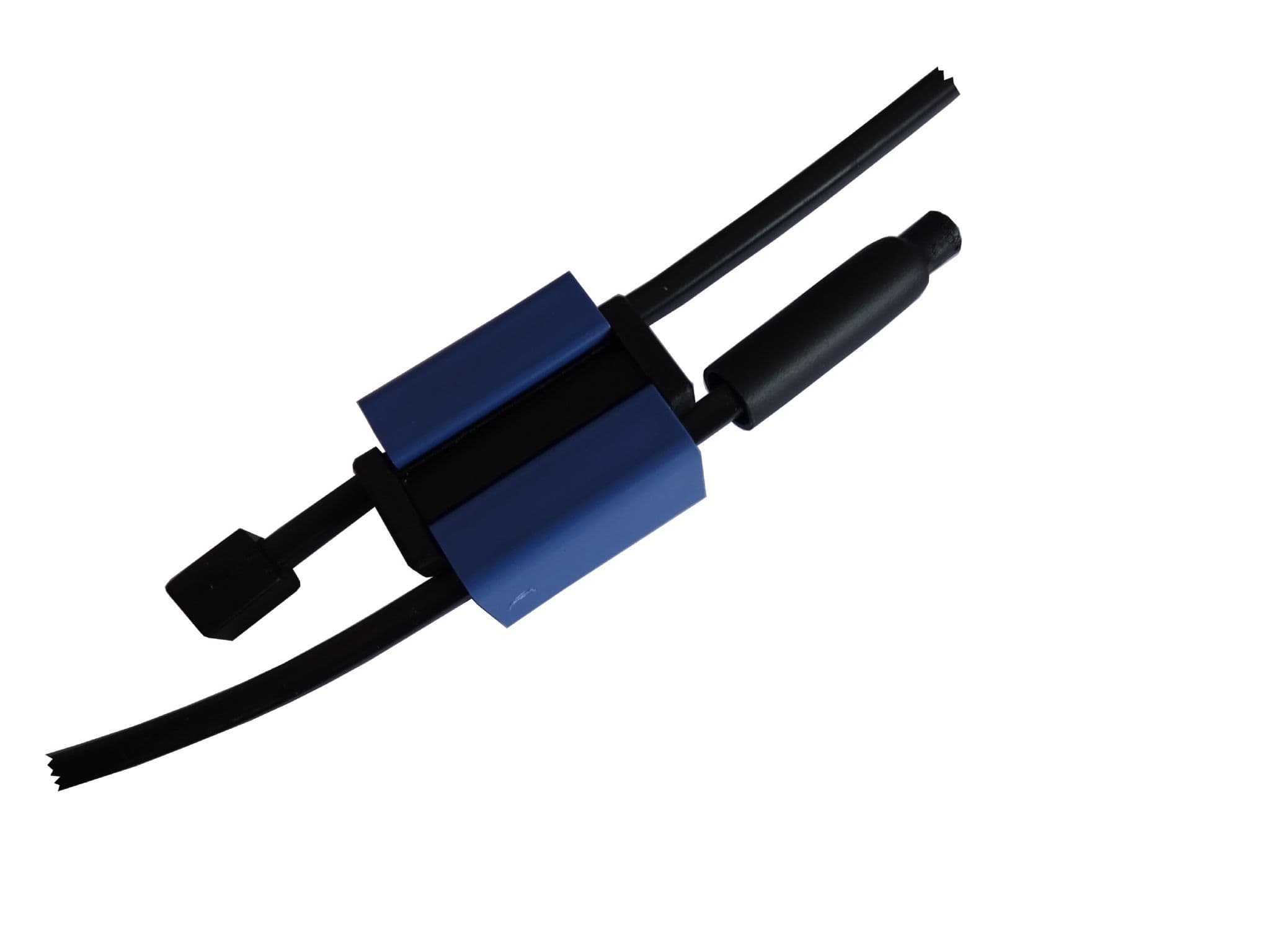

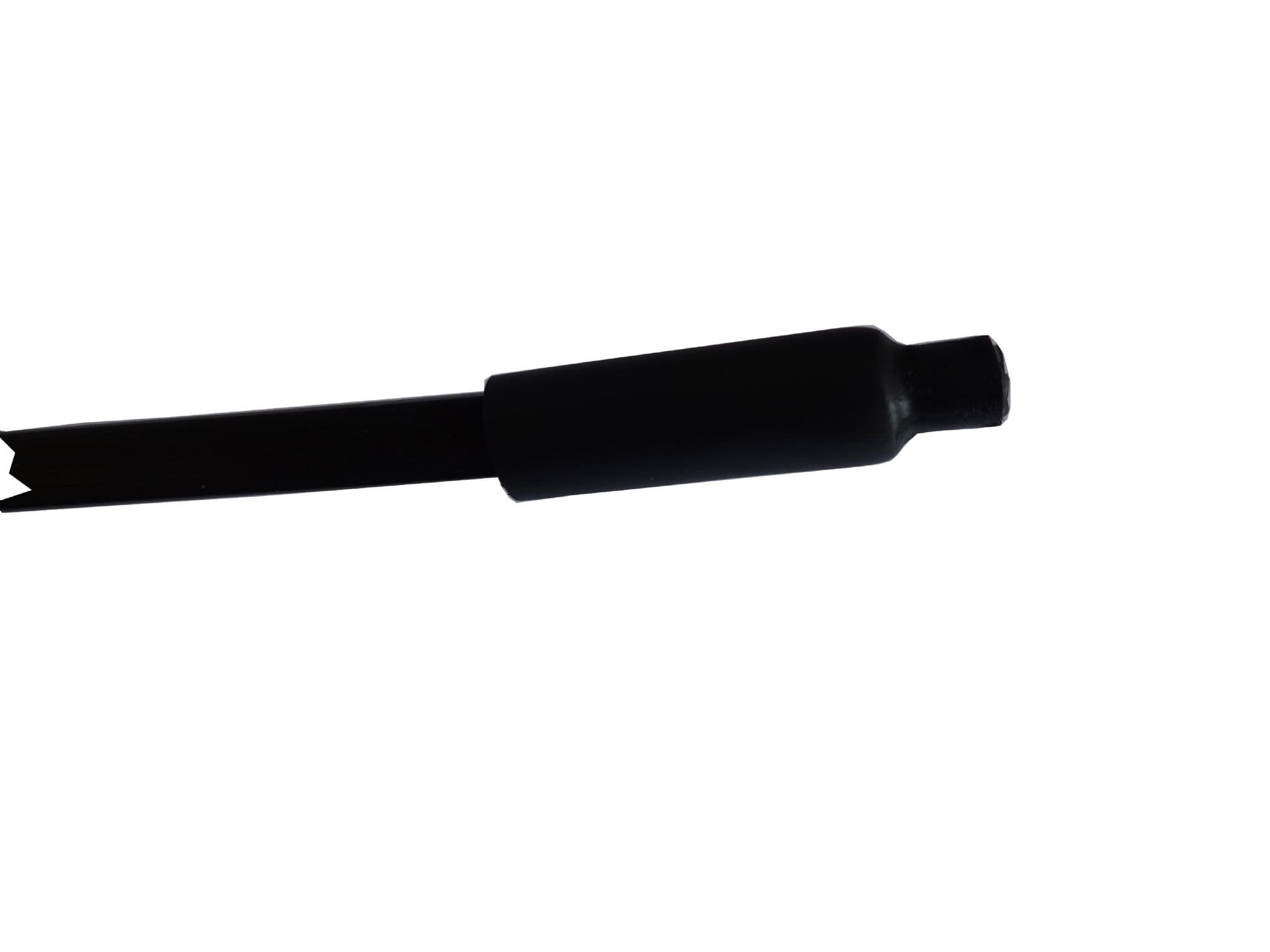

The cross section of the cable is flat top and bottom but also flat on the sides , it is designed to be used with the Aspock double Click cable connectors and the heat shrink cable ends to seal the cable ends(see related products).

This twin core cable can be used on trailers and caravan lights.

WIRING CONNECTIONS

1 =  Yellow = Left hand indicator.

2 = Blue = Fog light.

3 = White = Earth.

4 = Green = Right hand indicator.

5 = Brown = Right hand side light.

6 = Red = Stop light.

7 = Black = Left hand side light

Maypole part number MP321

Technical specifications

Brand MAYPOLE
Weight 0.05kg
