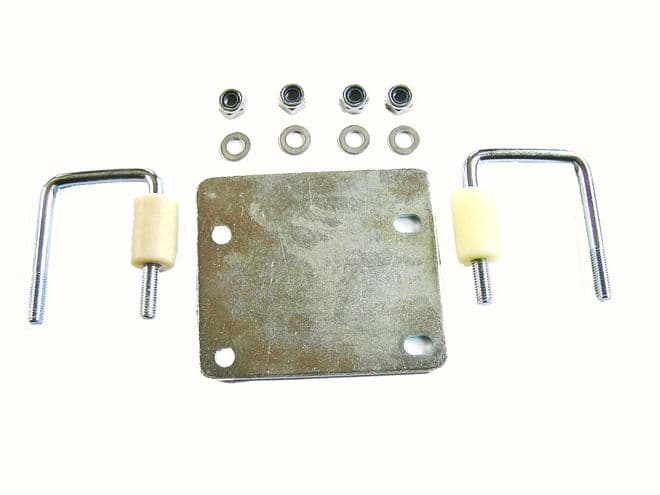

JOCKEY WHEEL CLAMP FIXING KIT 50mm & 60mm MP191

Product information

EASY-FIT JOCKEY WHEEL CLAMP FIXING KIT FOR 50MM AND 60MM DRAWBARS

ALLOWS JOCKEY WHEEL CLAMPS TO BE FITTED WITHOUT DRILLING THE DRAWBAR

ACCEPTS 34MM - 42MM - 48MM CLAMPS

SUITABLE FOR MOST TRAILERS INCLUDING ERDE, DAXARA AND MAYPOLE

(CLAMP NOT INCLUDED)

Product only to be fixed to flat sided drawbars

Dimensions of the mounting plate
140mm x 122mm , 5mm thick with 4 X M10 holes drilled through plate, 2 elongated .
Location of holes from top 10mm and 80mm
Distance between holes top to bottom 70mm centre to centre and side to side 110mm centre to centre
U bolts are M10 thread 60mm x 60mm
