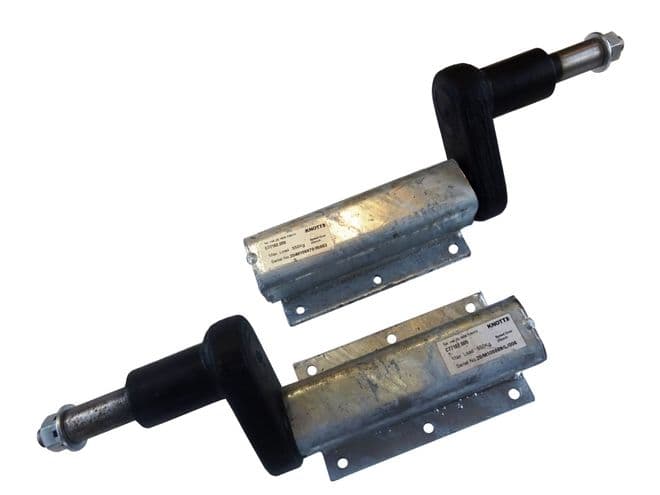

KNOTT 550KG EXTENDED SUSPENSION UNITS

Product information

Genuine Knott high quality 550kg suspension units with galvanised bodies.

Manufactured from mild steel ,25mm thick forged steel drop arms with rubber suspension inserts,

Extended length 1" diameter stub axles to allow fitment of wheels with a offset e.g. mini wheels.

6 hole mounting plate ( 67mm between bolt holes and 70mm across)

76mm long Drop arm with a angle of 45 degree below centre.

Main body length 198mm

Overall length of stub axle 140mm

Drop arm to rear of hub 63mm

Fits standard 1" tapered hub ( bearing numbers 44643 and 44643L )

SOLD IN PAIRS

Brand	KNOTT AVONRIDE
Weight	12.2kg
