Product information

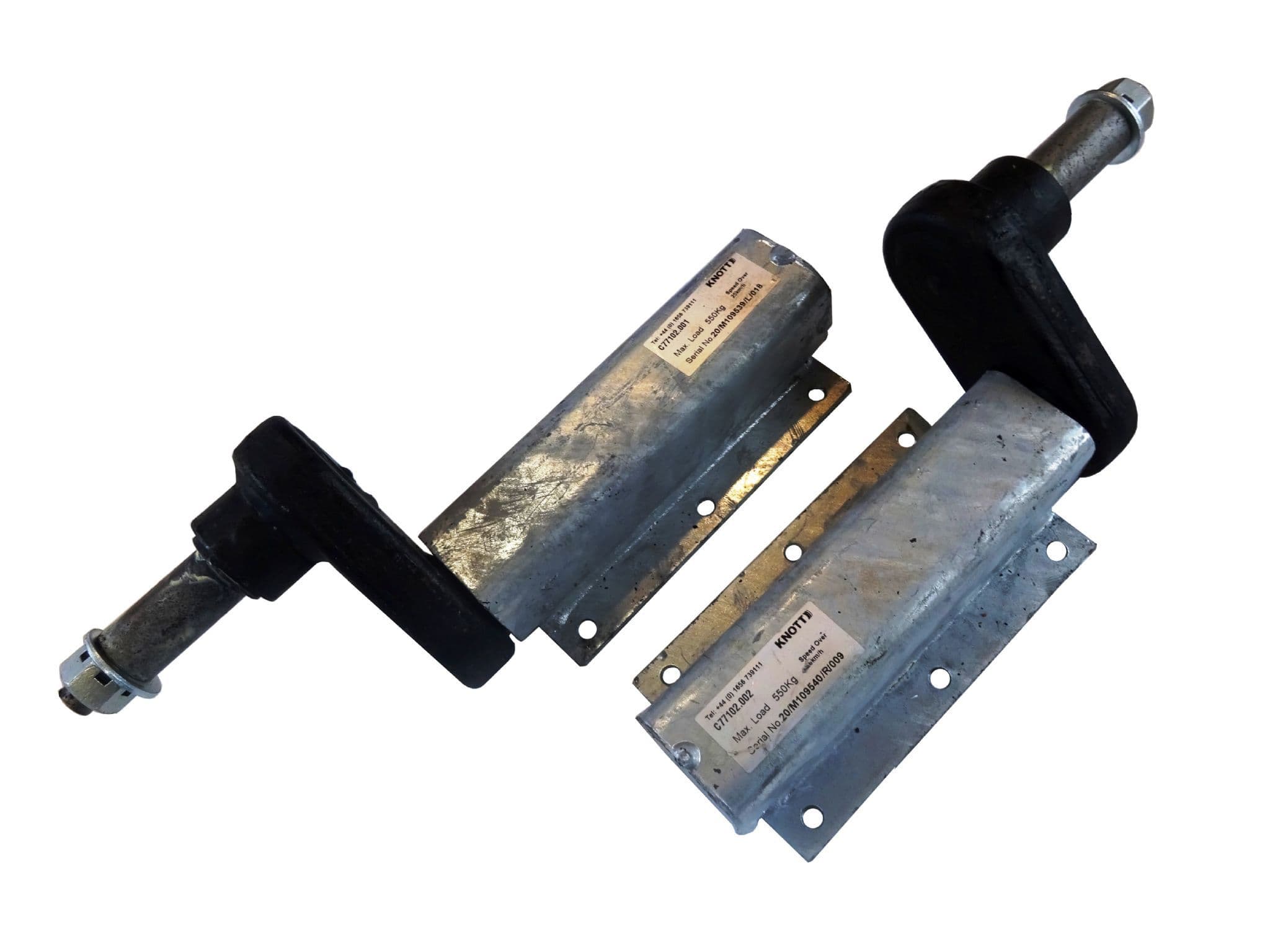

Genuine Knott high quality 550kg suspension units with galvanised bodies.
Manufactured from mild steel ,25mm thick forged steel arms with rubber suspension inserts,
Standard length 1" stub axles
6 hole mounting plate ( 67mm between bolt holes and 79mm across)
76mm long Drop arm with a angle of 45 degree below centre.
Main body length 198mm
Overall length of stub axle 108mm
Drop arm to rear of hub 25mm
Fits standard 1" tapered hub ( bearing numbers 44643 and 44643L )
SOLD IN PAIRS
Technical specifications
| Weight | 11.8kg |
