Product information

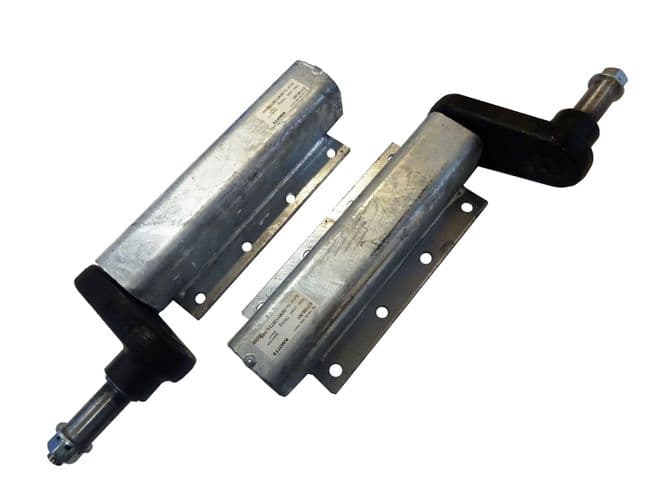

Genuine Knott high quality 750kg suspension units with galvanised bodies.
Manufactured from mild steel ,25mm thick forged steel drop arms with rubber suspension inserts,
Standard length 1" stub axles
8 hole mounting plate ( 73mm between bolts and 100mm across)
100mm long Drop arm with a angle of 22.5 degree below centre.
Main body length 303mm
Overall length of stub axle 105mm
Drop arm to rear of hub 25mm
Fits standard 1" tapered hub ( bearing numbers 44643 and 44643L )
SOLD IN PAIRS
Technical specifications
| Weight | 19.4kg |
