Product information

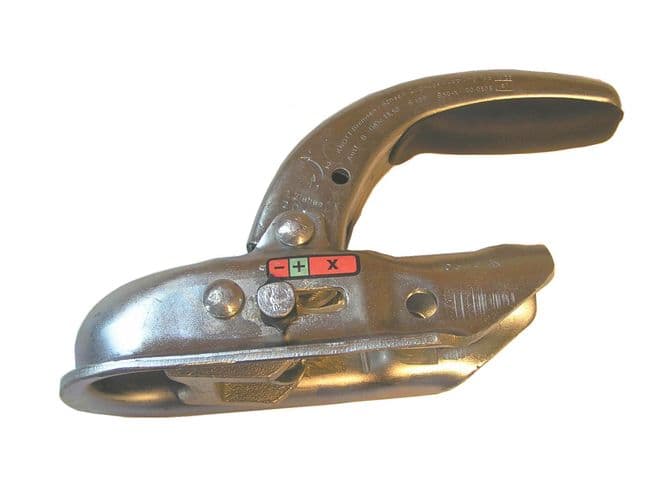

This hitch head is fitted to Knott - Avonride coupling and may fit others .
Avonride part no: SBO46
Knott part no; 575002

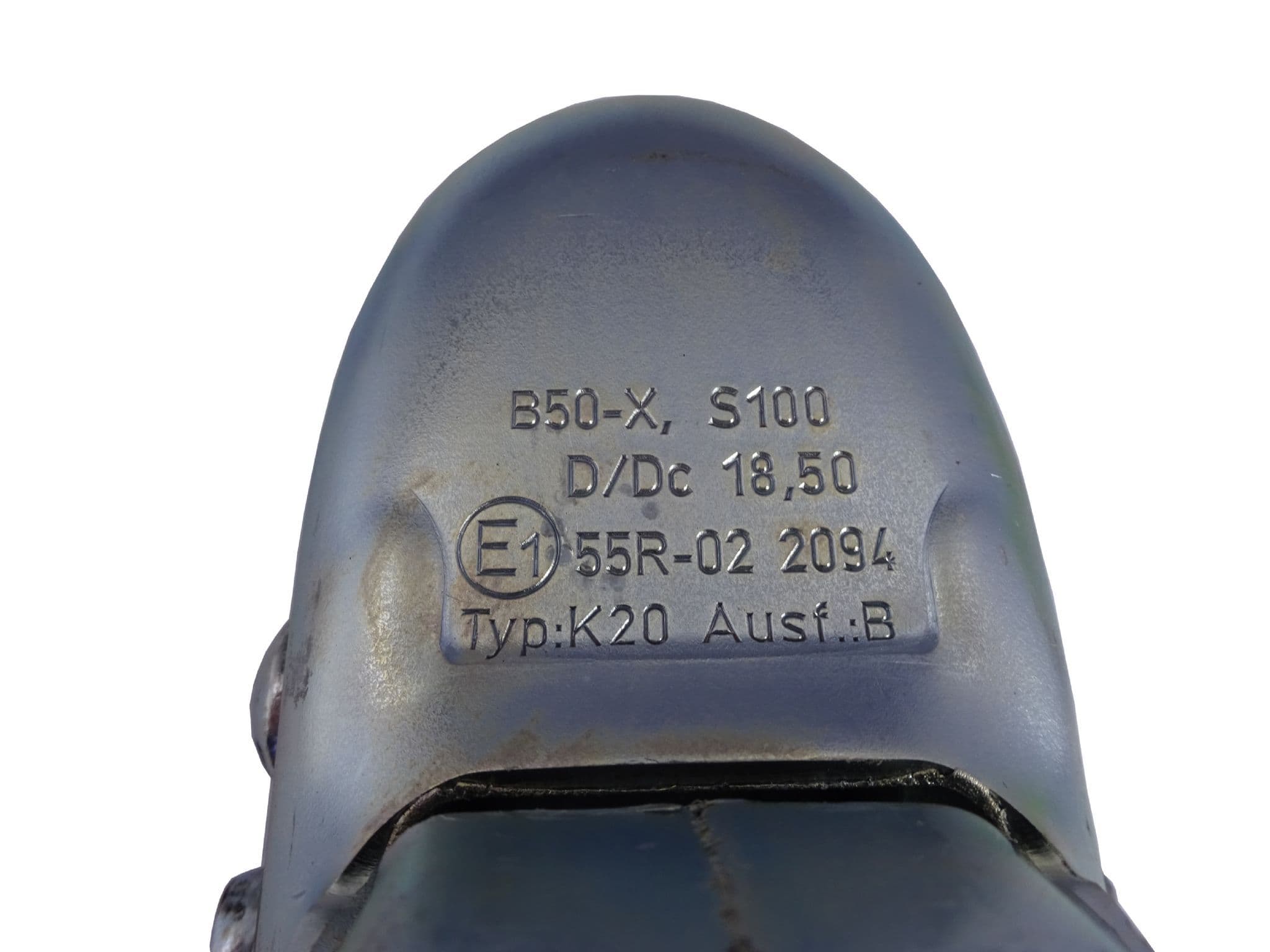

Type K20 Ausf B
This head fits a 45mm draw tube, the bolts are 40mm apart and the rear one goes down through the draw tube.
Made from 5mm pressed steel.

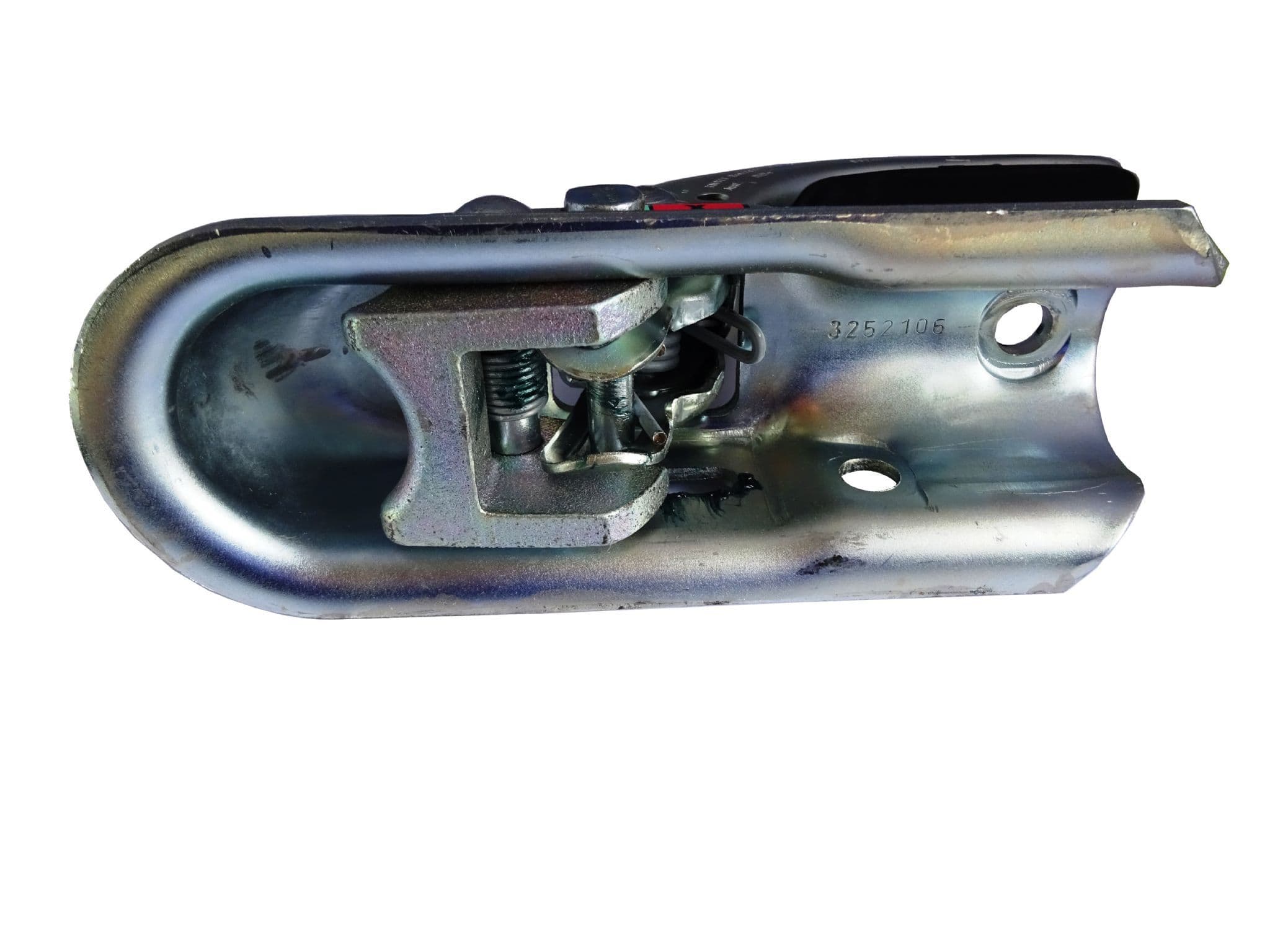

The part that grips the back of the ball it made from heavy duty cast steel
On the side is a wear indicator
On the side of the handle is a hole that a small padlock can be fitted.
Technical specifications
| Weight | 2.3kg |
