Product information

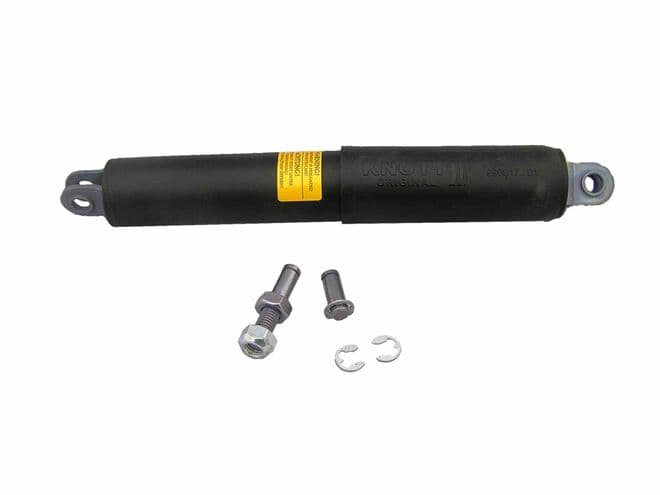

Knott- Avonride spring pack energy store.
The body is made from black plastic
A oil damped spring pack kit comes complete with bolt , nut , pin and E clips.
As fitted to current production KFG and KRV couplings
This kit fits KFG 1300KG - 3500KG AND KRV3000KG- 3500KG
Knott KRV30 - KRV35 - KFG13 - KFG20 - KFG27 - KFG30 AND KFG35
Part number (found stamped on plastic) : 990029.01
Knott part number 202453.001
Please note if your energy store has the part number 990017 without the .01 this part is obsolete a upgrade kit is available please phone us on 01823 350005 to find out more
The length of the energy store is 330mm from centre of pin to centre of bolt
The energy store uses stored spring energy to override the auto reverse brake should the trailer or caravan roll backwards.
Technical specifications
| Brand | KNOTT AVONRIDE |
| Weight | 1.4kg |
