Product information

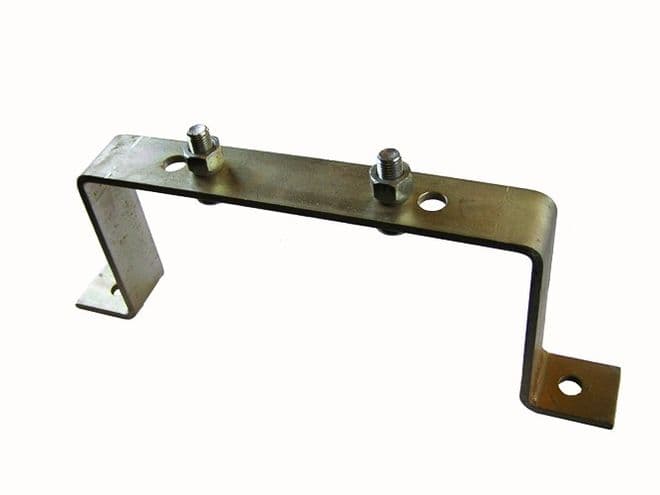

Trailer spare wheel holder for 13in wheels.
Fits 100mm pcd and 5.5in pcd wheels.
The bracket is made from 5mm mild steel and zinc plated.
The bracket is 40mm wide.
The carrier mounting bolt holes are 12mm and 290mm apart.
From the under side of the bracket to the out side is 120mm.
The overall width is 340mm and the cranked width is 257mm
The PCD is Pitch Circle Diameter being the distance between diagonal stud centre.
Fits 100mm pcd and 5.5in pcd wheels.
The bracket is made from 5mm mild steel and zinc plated.
The bracket is 40mm wide.
The carrier mounting bolt holes are 12mm and 290mm apart.
From the under side of the bracket to the out side is 120mm.
The overall width is 340mm and the cranked width is 257mm
The PCD is Pitch Circle Diameter being the distance between diagonal stud centre.
Technical specifications
| Weight | 1.02kg |
